Geovision GV-AS1520 Controller

GV-AS1520 Controller With
Built-in UHF RFID Reader

Enjoy hassle-free parking management

Anti-Passback (APB) support

Ideal sensing range within 10 m (32.8ft)

Support for external sensors

Special energy-saving design reducing power consumption

Effective identification with specially designed antenna pattern

Built-in antenna and RF module

Vehicle counting and parking share space

Area Monitor & track suspicious activity

DC 12V/ PoE+ (IEEE 802.3at)

Application

GV-AS1520, this High Precision UHF RFID Controller includes exciting features from Proximity Reader for Vehicle Management. It can work as a standalone device and detect the moving vehicle up to 10 meters (32.8ft).
Each GV-AS1520 can store up to 100,000 cards, and seamlessly integrate with GV-Access control platform (GV-ASManager) to create complete security solution without hassle.

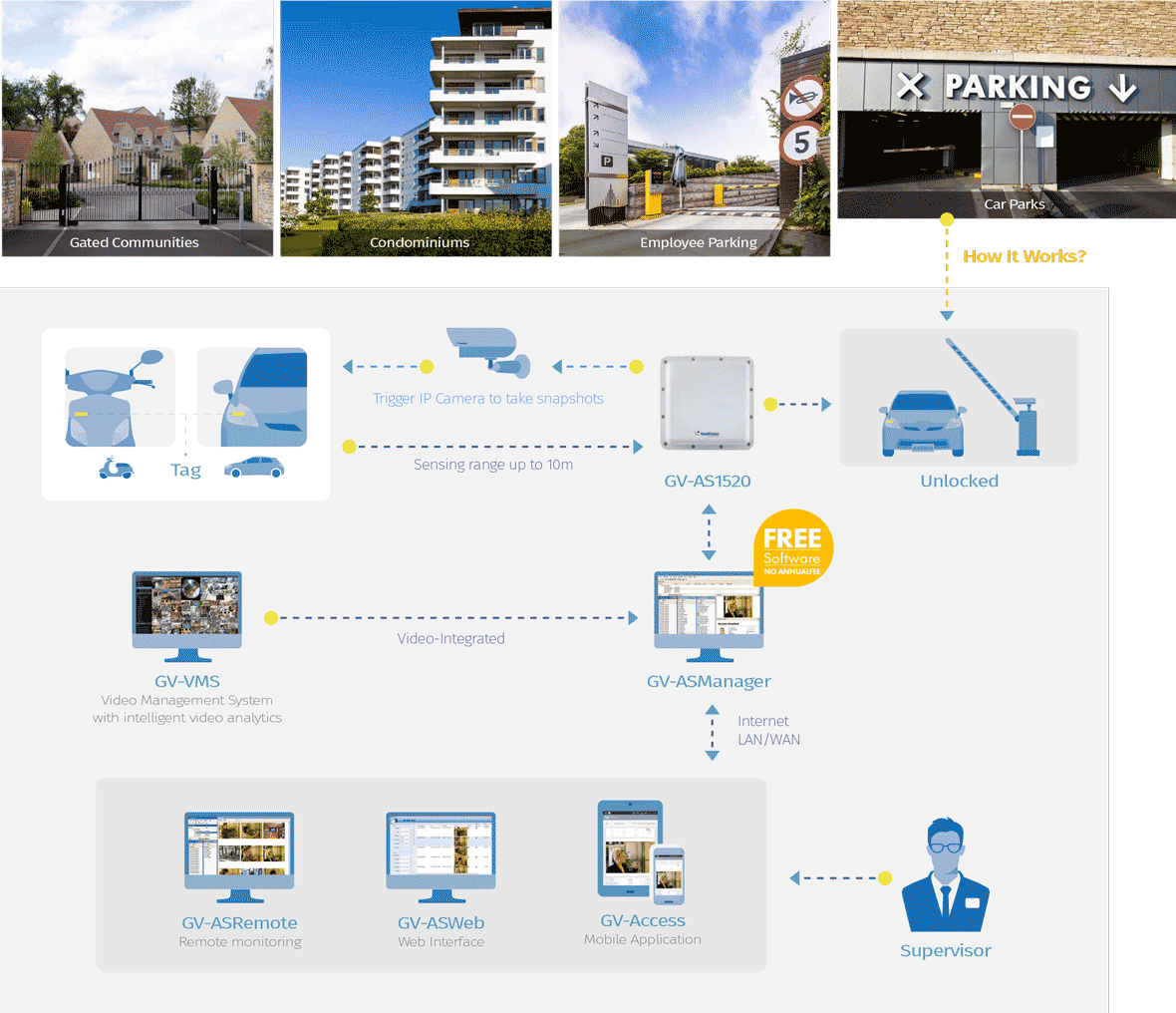

Geovision provides All-in-One parking management solution to help minimizing cost, maximizing performance, and bettering user experience

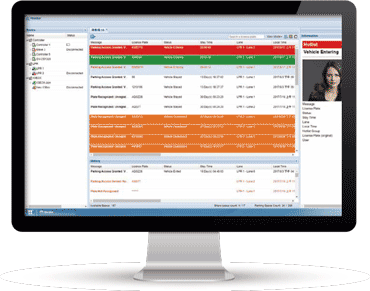

Professional Access Management Platform

Multilevel Administration Access

Web-interface access method

Time and Attendance Management

Visitor Management

Patrol Management

Manage multiple locations from one place

Visual Map interface

Reporting / Tracking

IP Camera & VMS Integration

Real-time monitoring and notification

Installation Site

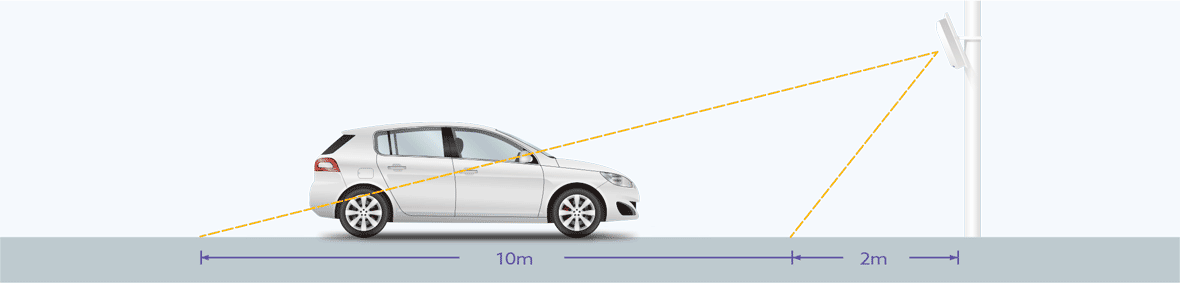

Long Range Reader (2 ~ 10 m)

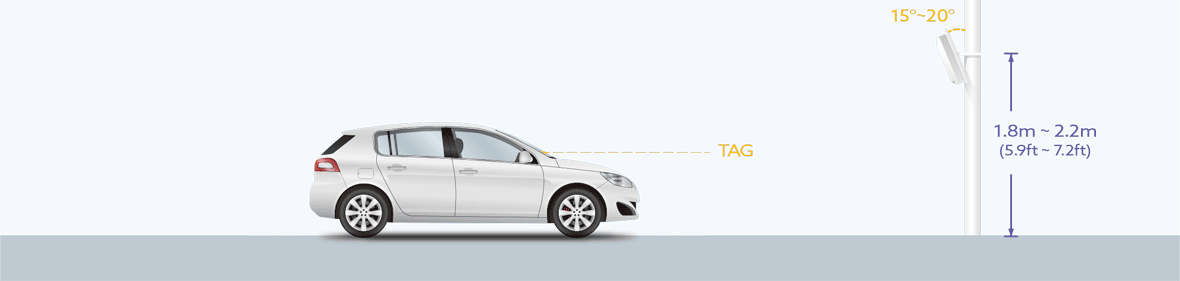

Check angle: Recommended height to set RFID reader is 1.8m ~ 2.2m (5.9ft ~ 7.2ft), and no lower than location of RFID tag.

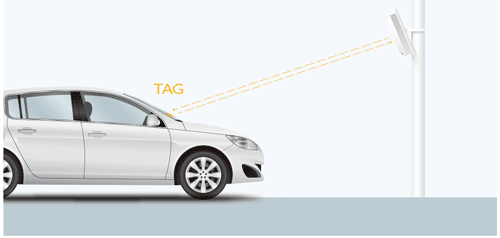

Corresponded placement between RFID reader and tag is pictured as above.

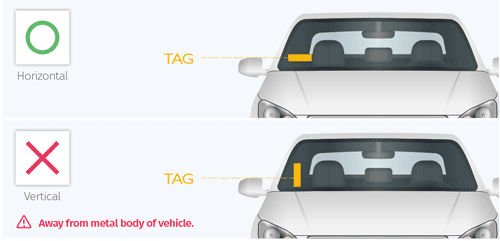

Check orientation: Fully facing antenna, horizontally in parallel.

Product Spec GV-AS1520

CPU	ARM-based 32bit RISC
Number of User Cards	100,000 cards
Antenna Gain	7.71 dBi (circular polarization)
Antenna Receiving	50 ohm U.FL
Operating Frequency	AS1520 TW 922-928MHz AS1520 US 902-928MHz AS1520 EU 865-868MHz
Supported Transponders	EPC Gen2 (ISO 18000-6C)
Receiving sensitivity	-85 dBm
Reading Range (Avg.)	10 m (32.8ft) max.
Operating Voltage	12V DC, 1.25A / POE+ (IEEE 802.3at, provides up to 25.5 W)
Communication	TCP/IP
Digital I/O	Input: 2 inputs, dry contact, NO/NC Output: 4 relay output (30V DC, 1A; 110V AC~250V AC, 0.3A)
Temperature Range	-20°C ~ 55°C (-7.6°F ~ 131°F)
Relative Humidity	10 ~ 90% RH (non - condensing)

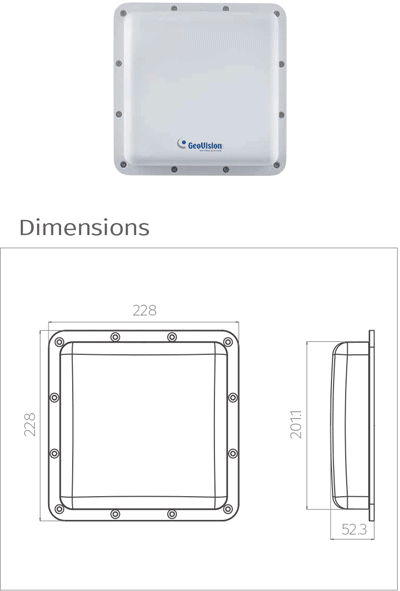

Dimension ( L × W × H )	228 × 228 × 52.3 mm (8.97 × 8.97 × 2.04 in)
Ingress Protection	IP56
