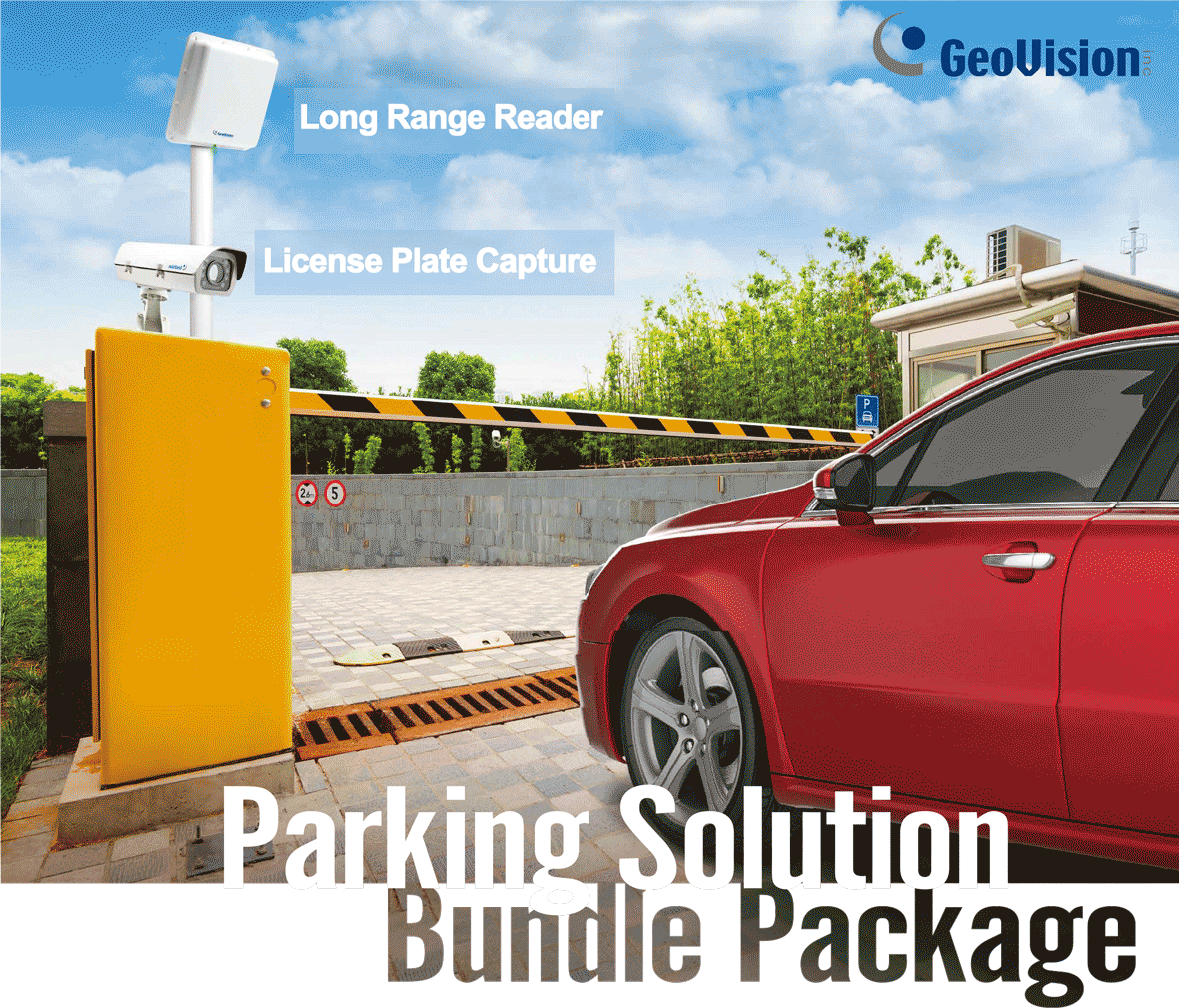

Parking Solution Bundle package

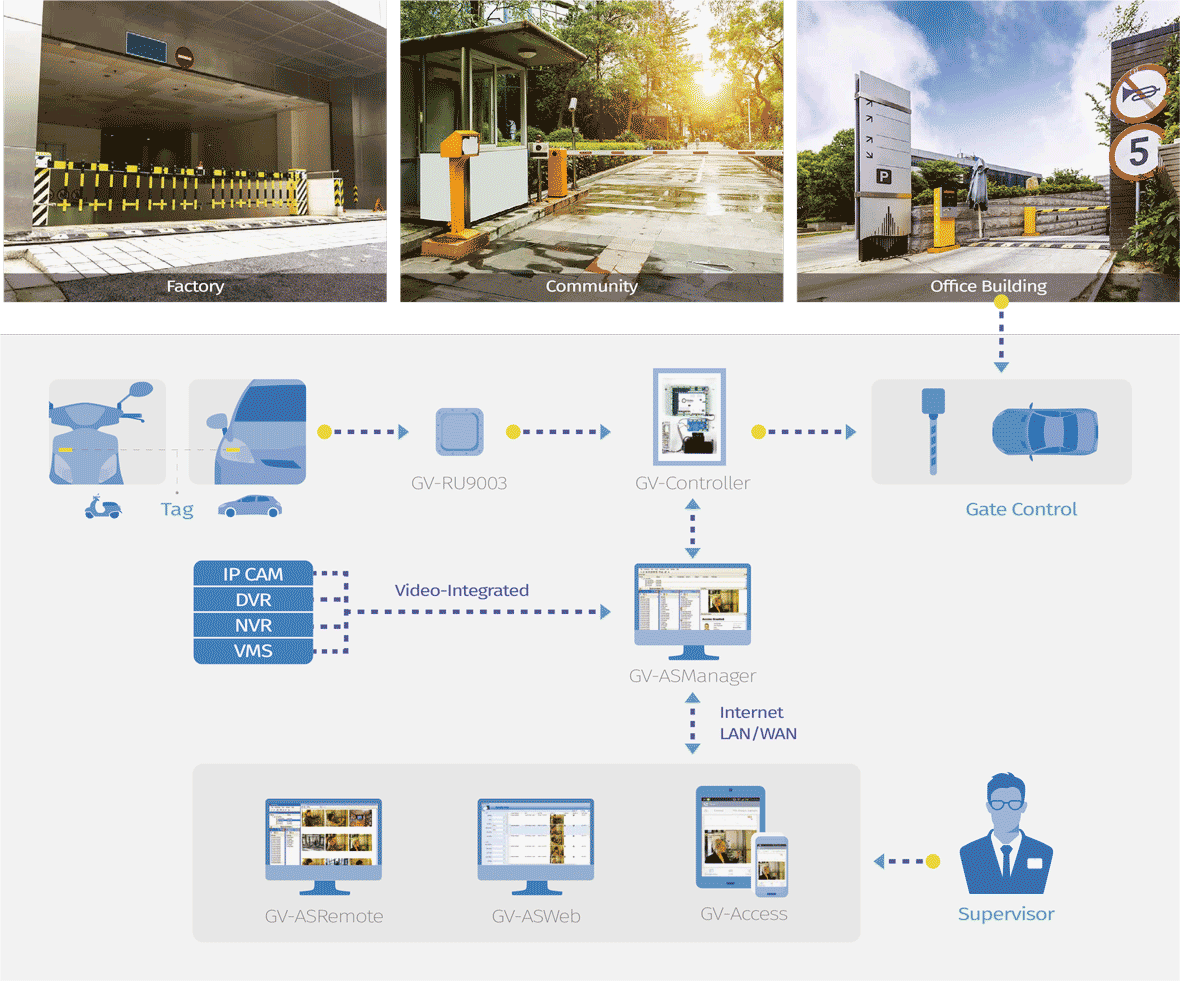

GV-RU9003 High Precision UHF RFID e-Tag Vehicle Management can br seamlessly integrated with any Geovision DVR, NVR, VMS and IP lPC Camera giving you easy access to both live and recorded videos from any access events.

Built-in 27.9 dBm RF module and 8dBi gain antenna

Wiegand interface supported

Invention patens design to reduce EMI radiation

Integrated output design for easy installation

Compliant with NCC/FCC/CE regulations and certified

IP56 ingress protection

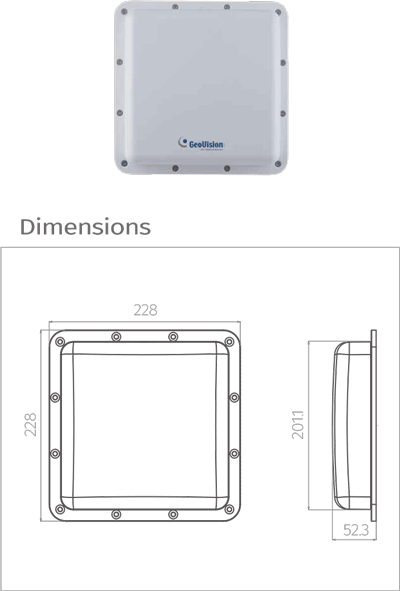

Dimensions:228 x228 x52.3 mm

Electronic tag compliant with EPC Gen II (ISO18000-6C) standard

Hands-free, rolling entry

Long-range access control enables drivers to open doors and parking gates without opening the window or stopping the vehicle.

Stopping for ID tag

Lining up for entry

Fumbling for remote

Manage access

GV-ASManager

Access management and monitoring.

GV-Access

Mobile viewing.

Remotely open/close doors or gates.

Bundle Package.

Bundle Package

Operating Voltage	12V
Antenna Gain	8dBi
Antenna Connection	50 ohm U.FL
Communication	wiegand
Operating Frequency	RU9003 TW : 922-928MHz RU9003 US : 902-928MHz RU9003 EU : 865-868MHz
Transmitting Power	27.9 dBm (Adjustable)
Modulation Current Consumption Supported Transponders	PR-ASK, ASK <1A (ISO 18000-6C)EPC Gen II
Receiving sensitivity	-85 dBm
Reading range (Avg.)	10M (32.8ft) Max
Temperature Range	operating:-20 C ~ 55 °C storage:-20 C ~85°C
Relative Humidity	5-90 %
Dimension(L x W x H )	228 x 228 x 52.3 mm
Ingress Protection	IP56
